Myoelectric Accessories

S-Charge System

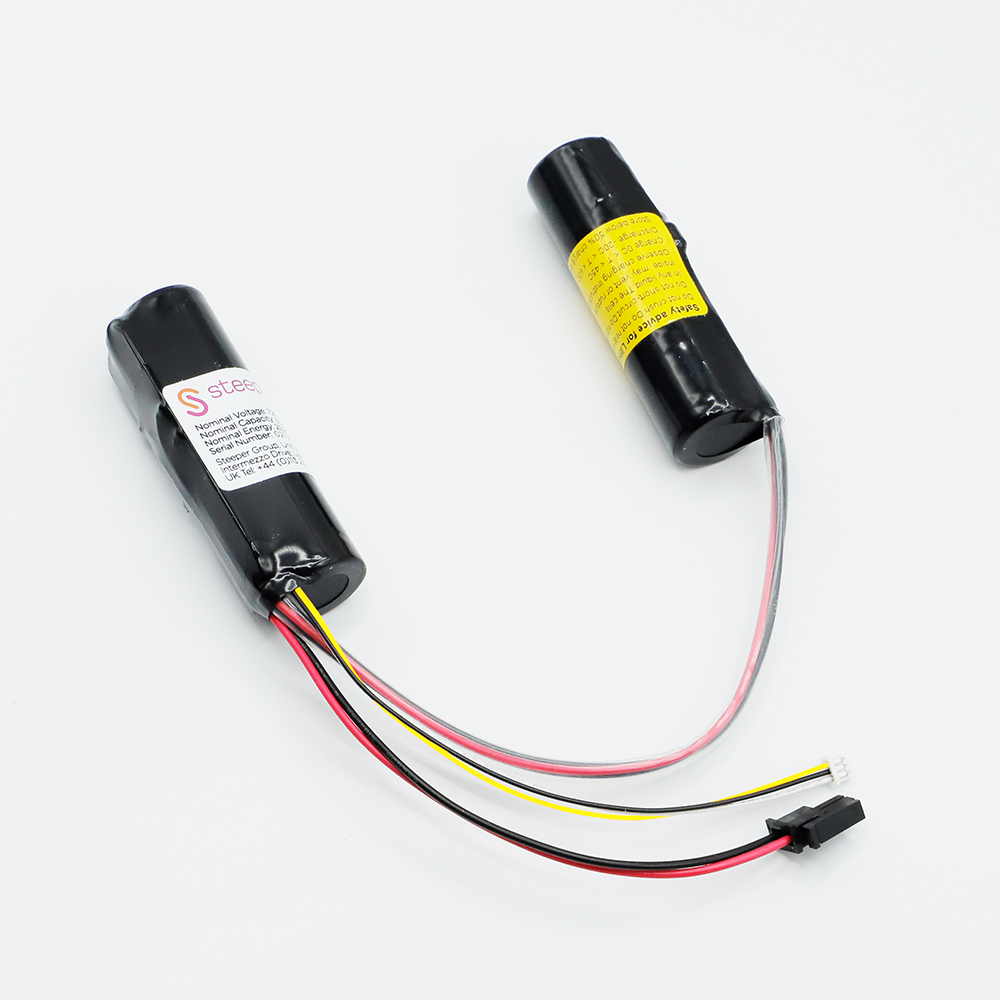

Battery Pack Dimensions (not incl cables)
67 x 40 x 22mm
Battery weight
106g
Capacity
3500mAh
Power Rating
Nominal 7.2V
OLED Display Dimensions
50 x 20 x 7mm
Material
Lithium polymer

Key Features

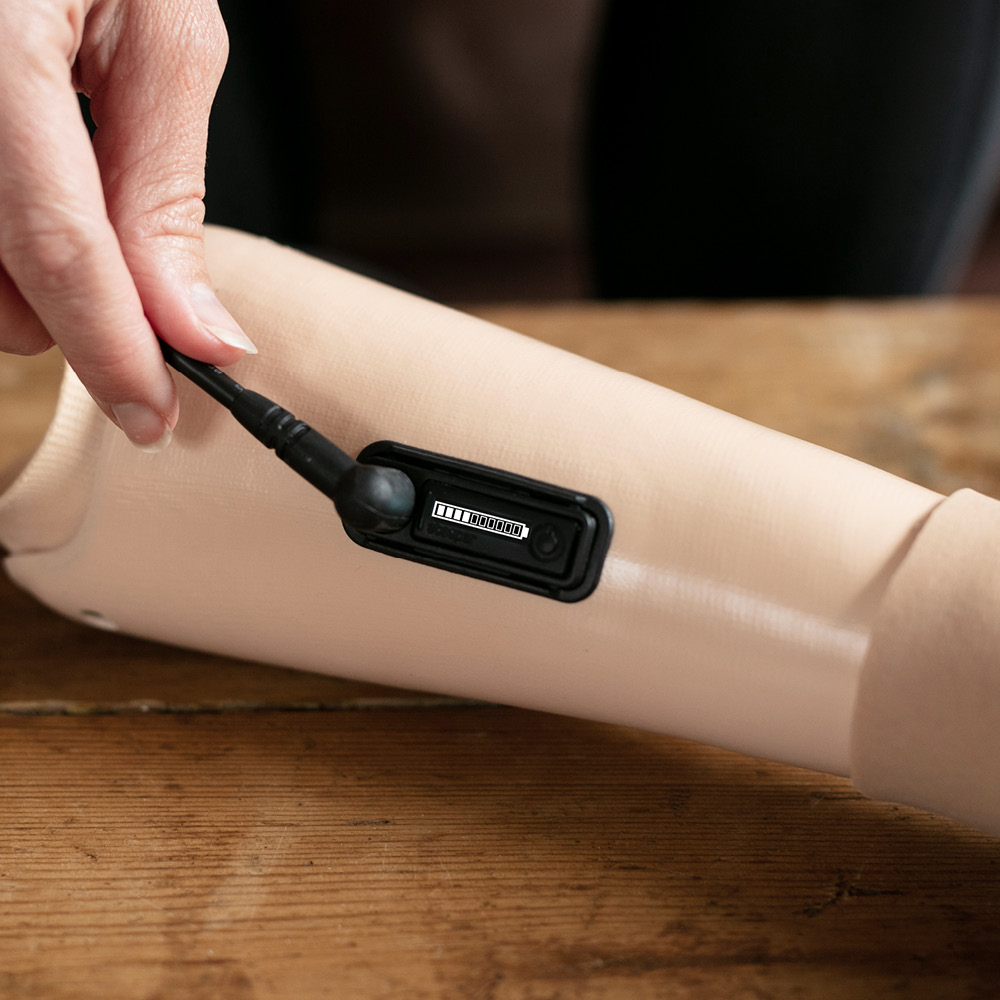

The S-Charge System is a user friendly, powerful internal battery system with an OLED Display and a magnetic charger, that is fitted into a prosthetic forearm. This allows the user to easily activate, deactivate and charge their prosthesis whilst confidently monitoring the power status during use through the display of real-time battery life icons.

The S-Charge System can easily be installed into a variety of limb builds, including the Steeper EspireTM Classic Plus Elbow. The system enables the use of powered devices such as electronic elbows, powered wrist rotators, multi articulating hands and terminal devices.

Download Brochure

Download Information and Ordering Guide

Technical Manual

User Guide

View Catalogue Page

Features & Benefits

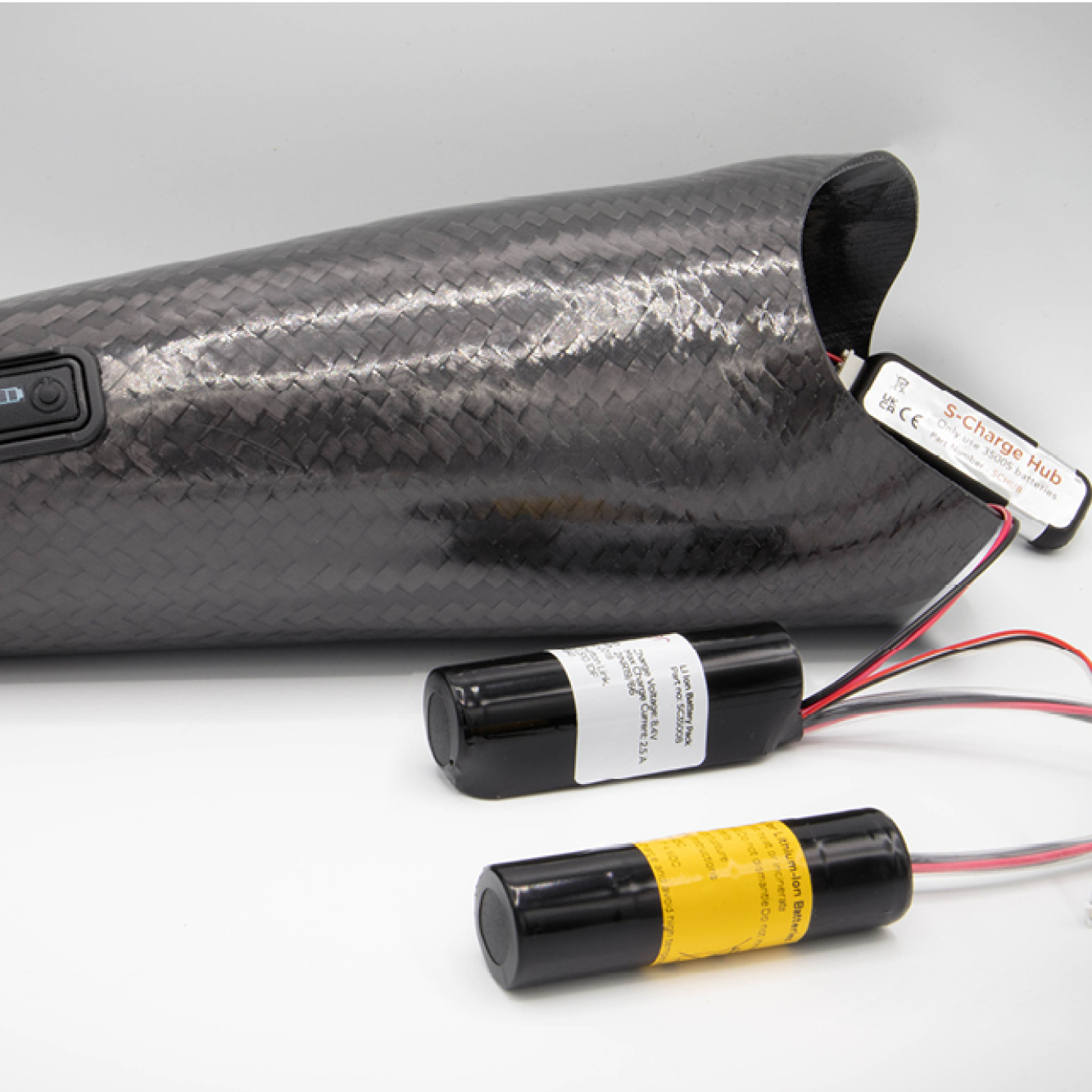

  • High capacity 3500mAh battery system
  • Low profile Battery Pack which can easily be fitted into the user's forearm
  • Easy-release magnetic charger which fully charges the device within 5 hours
  • Automatic Sleep Mode activation for power saving during the day
  • Flexible configuration as the Hub can be placed anywhere in the forearm
  • OLED Display shows real-time battery life icons
  • Simple one-button operation to activate the device
