Espire Classic

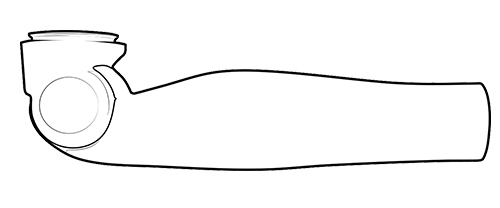

Espire Classic
The Espire Classic is a body-powered mechanical elbow that features a forearm counterbalance mechanism and manual lock. It uses a dial to adjust the effect of the counterbalance which can be located either laterally or medially. This model contains no electronics or circuitry to provide a lightweight option.
Download Brochure
Additional Downloads
Features & Benefits
Locking the elbow is performed via a cable on the device, and uses a simple upward pull to engage
Utilises a forearm counterbalance mechanism to negate the effects of gravity and allows the patient to position the forearm with minimal effort
Does not have a slip-stop function, meaning the elbow will not drift downwards under load - even when locked
Anatomical look and shape offer a natural resting position

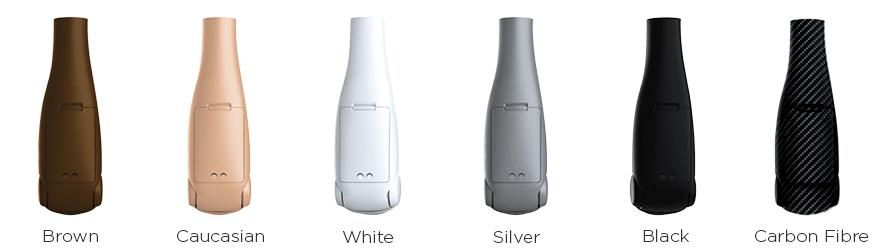

Available in six finish options: Brown, Caucasian, White, Silver, Jet Black and Carbon Fibre
Technical Information
Weight
Small | 1.44 lbs Standard | 1.48 lbs
Sides
Left and Right
Weight Limit
25 lbs (11.3kg)
Locking Function
Manual
Flexion Angle
-5 - 135°
Warranty
1-year warranty
Elbow Function
Counterbalance
Dial Placement Options
Medial and Lateral
Espire Models Comparison Chart
Espire Classic
Color
Options
View Custom Color Options
