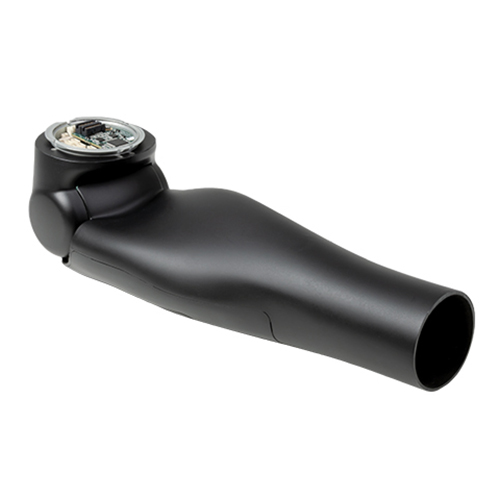

Espire Pro

The Espire Pro is a revolutionary powered elbow that is easy to use and anatomically correct. With a powerful battery and a comfortable centre of mass, this elbow functions all day with ease. The electronic lock, free-swing options, and accessible power button add ease to patients’ everyday tasks. The Pro is compatible with most terminal devices, switches, touch pads, and electrodes on the market.

The Espire Pro was awarded the Red Dot Product Design Award in 2020.


Features & Benefits

  • Reliable gear box designed to ensure optimal patient safety, as when locked, the elbow will remain secure and neither flex nor extend
  • Optimally positioned center of mass so that the prosthesis is lightweight and comfortable and does not hinder the user
  • Innovative gear box control enables a high lift and hold capacity. Users can confidently hold 24 lbs, and dynamically lift 8.8 lbs to perform everyday tasks with ease
  • The two removable 3000 mAh batteries are designed to provide a full day of function each - supporting the use of wrist rotators and multi-articulating hands. When the battery needs recharging, the charging dock can refuel it in less than 31/2 hours
  • Full extension can be carried out in one second to provide controlled movement for the user
  • Can be programmed via the Hub app to either automatically free-swing, or have an electric, silent free-swing activated by myo signals
  • Gearbox development has resulted in it being 15% quieter

Technical Information
Weight Small | 2.37 lbs     Standard | 2.41 lbs
Sides Left and Right
Weight Limit 25 lbs (11.3kg)
Max. Lifting Force 10 ft-lb (13.6 N-m)
Flexion Angle -5 - 135°
Connections Inputs | 12       Outputs | 4
Speed 135° a second
Warranty 2-year warranty (additional warranty available)


Espire Pro

​View Custom Color Options
