Elbows

Automatic Elbow

Operation
7 lockable flexion/extension positions
Free swing mode with lockable humeral rotation
Suitable For
Paediatric
Adolescent
Adult
Weight
242g
316g
334g
Elbow Size (Dia)
58-70mm
Wrist Diameter
38mm, 45mm,
50mm, 54mm

Key Features

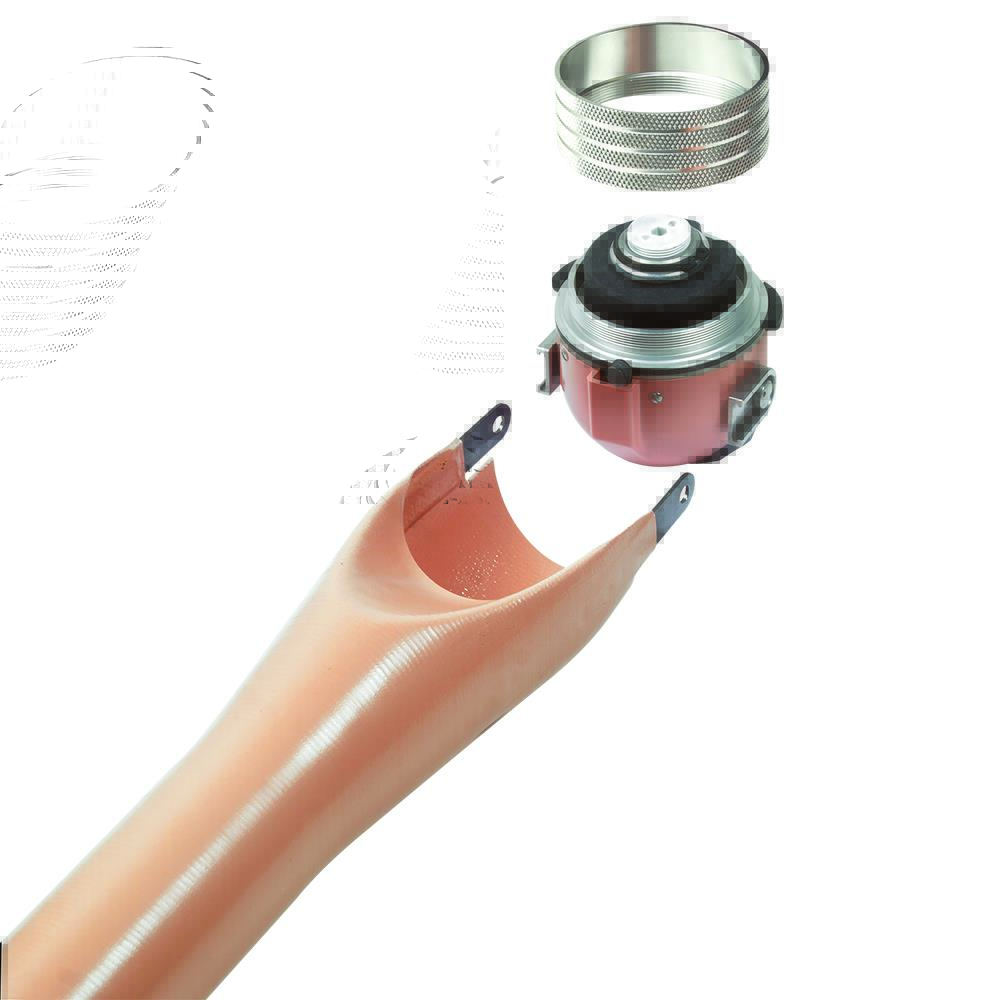

One of the most durable elbow units currently available, the Steeper Automatic Elbow is available in a range of 3 sizes and 4 color options. Flexion can be locked in 8 distinct positions, with a free swing position, using an anterior actuator that can be operated manually or by means of a harness.

Humeral rotation is available and can be controlled with an adjustable friction screw. The rotation can also be manually locked using a rotatable ring. Proximally the elbow connects to a lateral ring (sold separately) which should be laminated into the upper section of the prosthesis. Distally the elbow connects to a prefabricated forearm (sold separately) with parallel distal section which fits a range of wrist options.

The forearm contains reinforcing side steels with prepositioned holes to receive the flexion cable guide. The forearm is available in 4 colors, please contact SteeperUSA for information if alternative colors are required.

View Catalogue Pages

Features & Benefits

  • Eight lock positions
  • Locked/unlocked control of humeral rotation
  • Detachable forearms
  • Child, adolescent and adult sizes
  • Four colours available
