Mains Power Supply
50Hz
60Hz
Dimensions (LxWxH)
27x18x10mm
Weight
4.4g
Power Supply
5 to 16V
Frequency Bandwidth
90 to 450Hz
Cable Lengths
300mm, 600mm
1000mm

Key Features

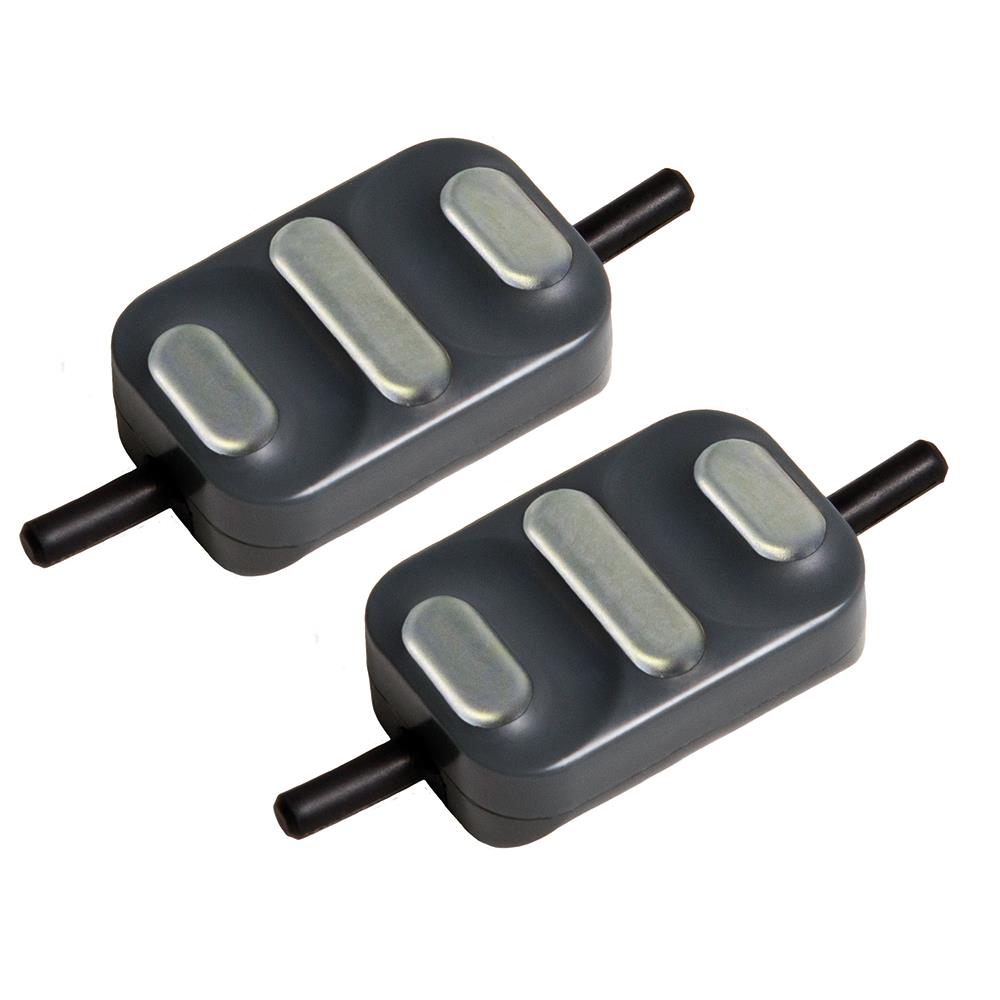

State-of-the-art electronics offer outstanding capture and amplification from signals as low as 10µV. Proportional output and in-built gain adjustment permits fine control of the terminal device. Biocompatible titanium skin contacts provide superior conductivity, while interference protection shields from common power sources and high frequency emitting devices. Suitable for either child or adult arm systems, each kit includes field replaceable spare legs and two fabrication kits, for laminate or thermoplastic sockets.

Download Brochure     View Catalogue Page

Technical Manual     User Guide

Fabrication Guide

Features & Benefits

  • This electrode will control prosthetic devices from most major manufacturers
  • Proportional output signals
  • Suitable for child or adult systems
  • High sensitivity (2,000-100,000 fold) and range (90-450Hz)
  • Able to function with threshold control using signals as low as 10µV
  • Interference protection from common power sources, depending on electrode type and high frequency emitting devices
  • An Electrode Gain Control (EGC) is included to allow control of the myoelectric signal providing optimal control of the terminal device
  • Two fabrication options included in the kit
